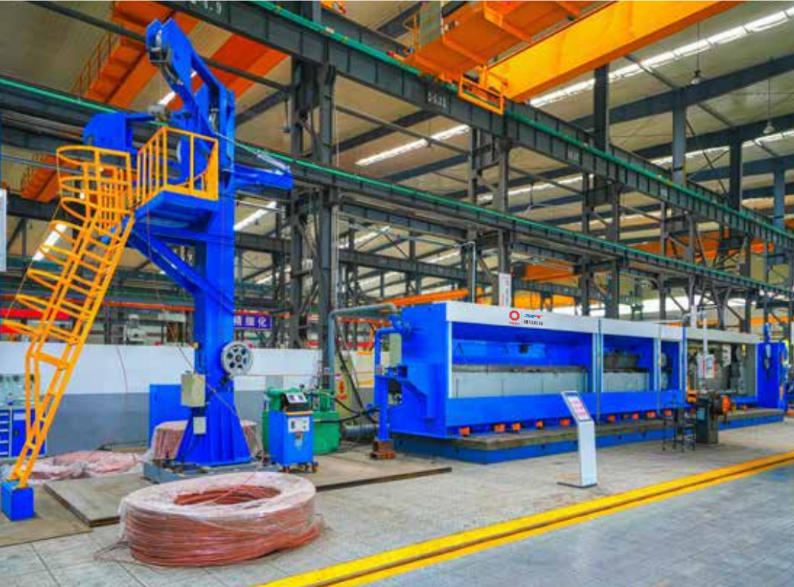

Copper Rod Breakdown Machine

Applications:

• Used for drawing the Ф8mm copper rod into the Ф1.2~Ф4.0 mm copper wire. After drawing the copper wire will directly continuously go through the softening and annealing treatment. Then, it will be coiled by the coiling machine such as a dual spooler or single spooler.

Features:

• The well-structured non-sliding copper rod breakdown machine is beautiful.

• The diameter of its wire drawing drum is Ф450mm. The drums are independently driven by the AC variable frequency motor, and the speed can be synchronously adjusted for the instant die replacement.

• This copper wire drawing machine applies the synchronous belt transmission. It is convenient to maintain.

• Both the programmable controller and touch screen are utilized to coordinate the working status of all the equipment parts. The parameters can be set, modified and displayed via touch screen.

Advantages:

• The non-sliding copper rod breakdown machine applies the quick mold change system which is driven by the fractional motor. The mold matching is convenient all the more.

• Non-sliding wire drawing can prolong the service life of the wheel rim and wire drawing die

• The wire drawing bench is more efficient and energy-saving, thanks to the application of the converter technique.
